Other attributes
| Place of Origin |
Zhejiang, China |
| Purpose |
for retrofit/upgrade |
| Model Number |
22 |
| Product name |
Electric Vehicle Charging Station |
| Mechanical life |
No-load plugging > 10000 times |
| Operating ambient temperature |
-30°C~+ 55°C |
| Housing material |
Thermoplastic with flammability rating UL94 V-0 |
| Ingress protection |
IP56 (Operating) |
| Operating current |
16A or 32A or Single-phase electricity or Three-phase electricity |
| Operation voltage |
250V |
| Insulation resistance |
> 1000MQ(DC500V) |
Packaging and delivery
| Packaging Details |
CARTON |
Supply Ability
| Supply Ability |
20000 Piece/Pieces per Month |
| Meets standards |
GB/T 20234.2-2015 |
| Mechanical life |
No-load plugging > 10,000 times |
| Operating ambient temperature |
-30°C~+ 55°C |
| Housing material |
Thermoplastic with flammability rating UL94 V-0 |
| Insulation resistance |
> 1000MQ(DC500V) |
| Terminal temperature rise |
< 50K |
| Pressure-resistant |
2000V |
| Current |
16A or 32A or Single-phase electricity or Three-phase electricity |
| Voltage |
250V |
| Power |
3.5KW or 7KW or 11KW or 22KW |
| Waterproof rating |
IP56 |
| Flammability rating |
UL94V-0 |

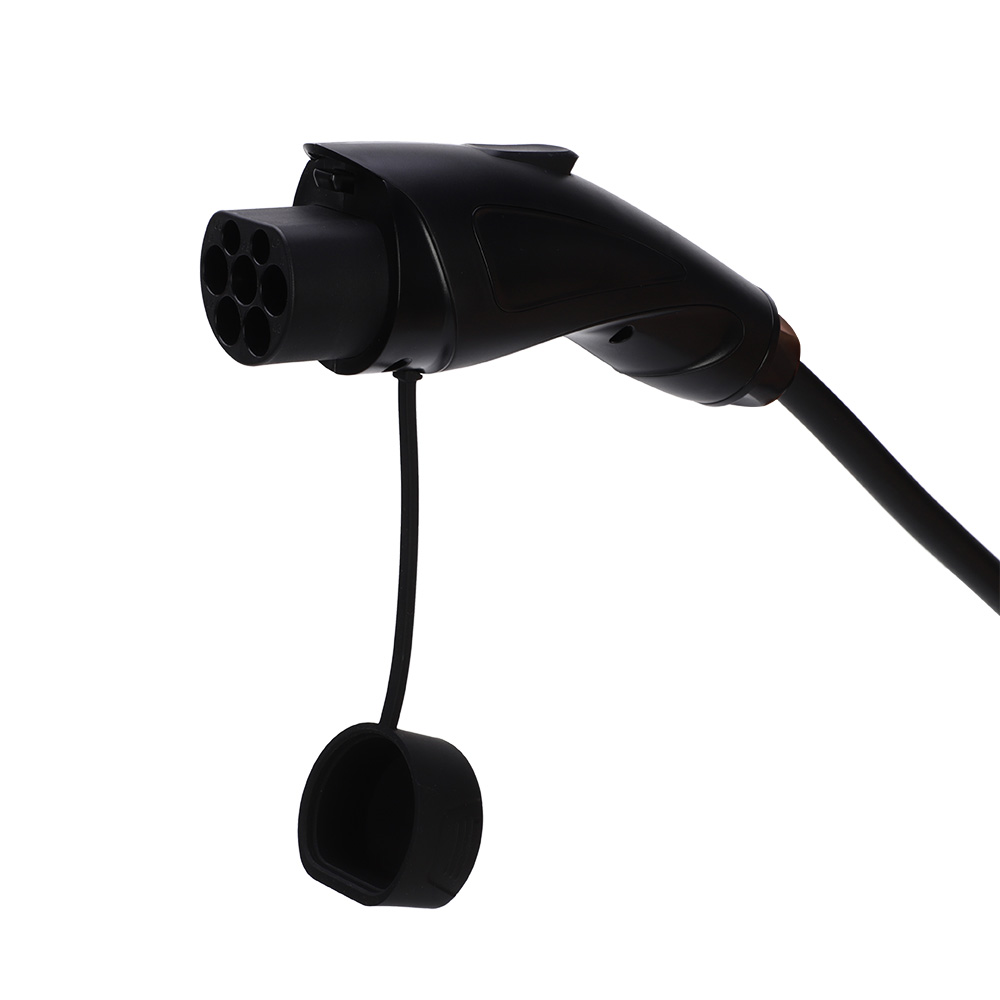

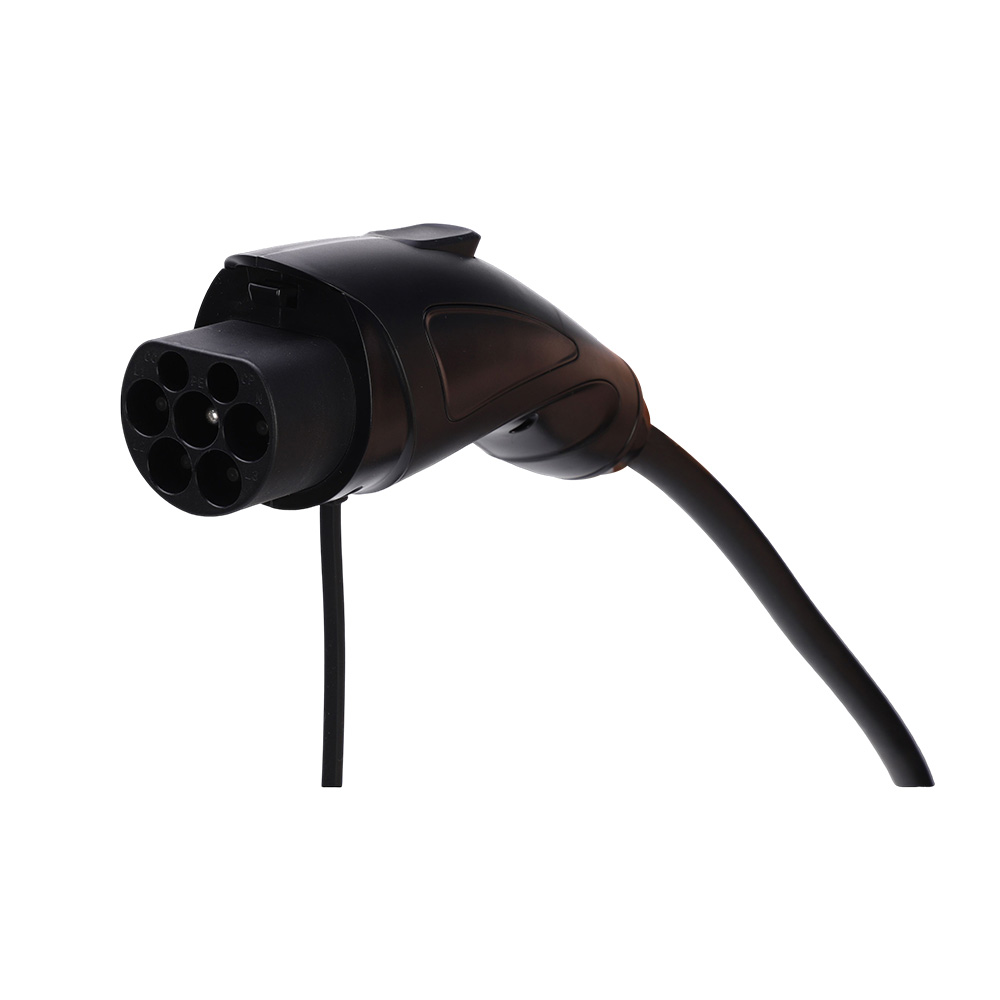

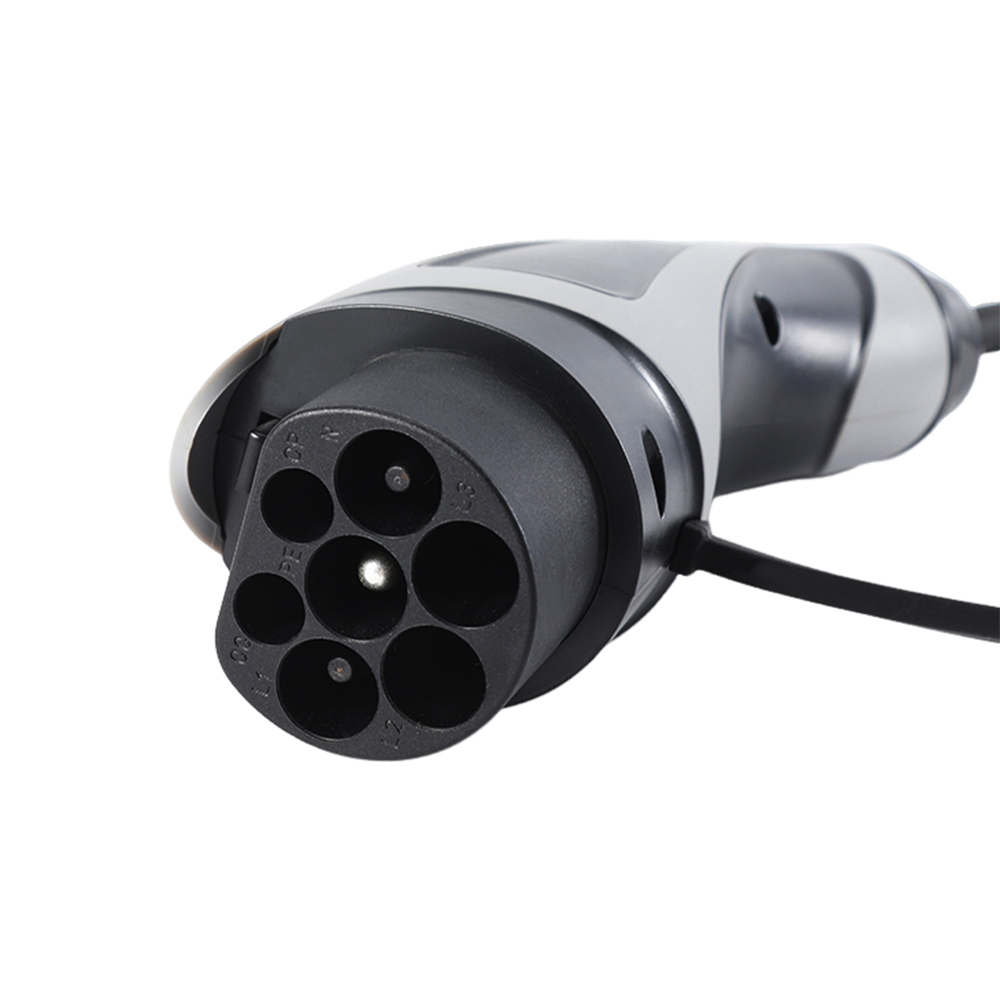

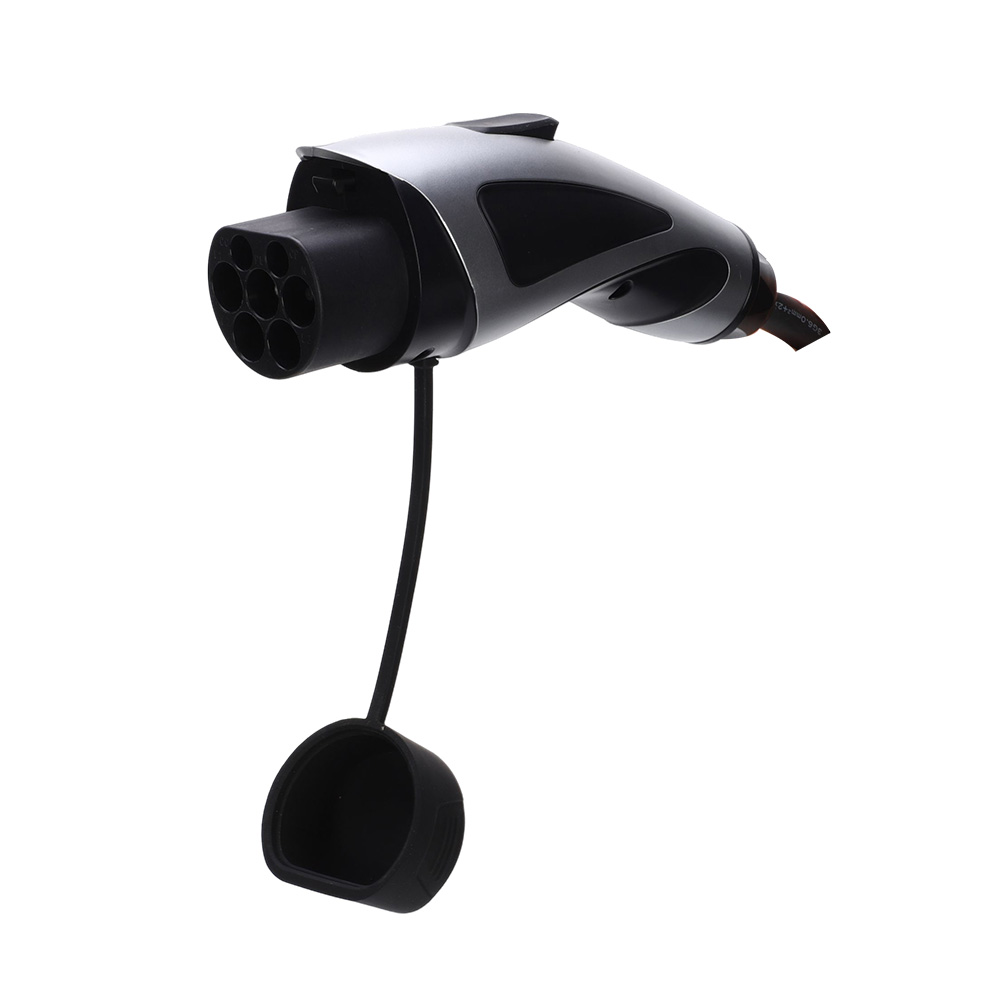

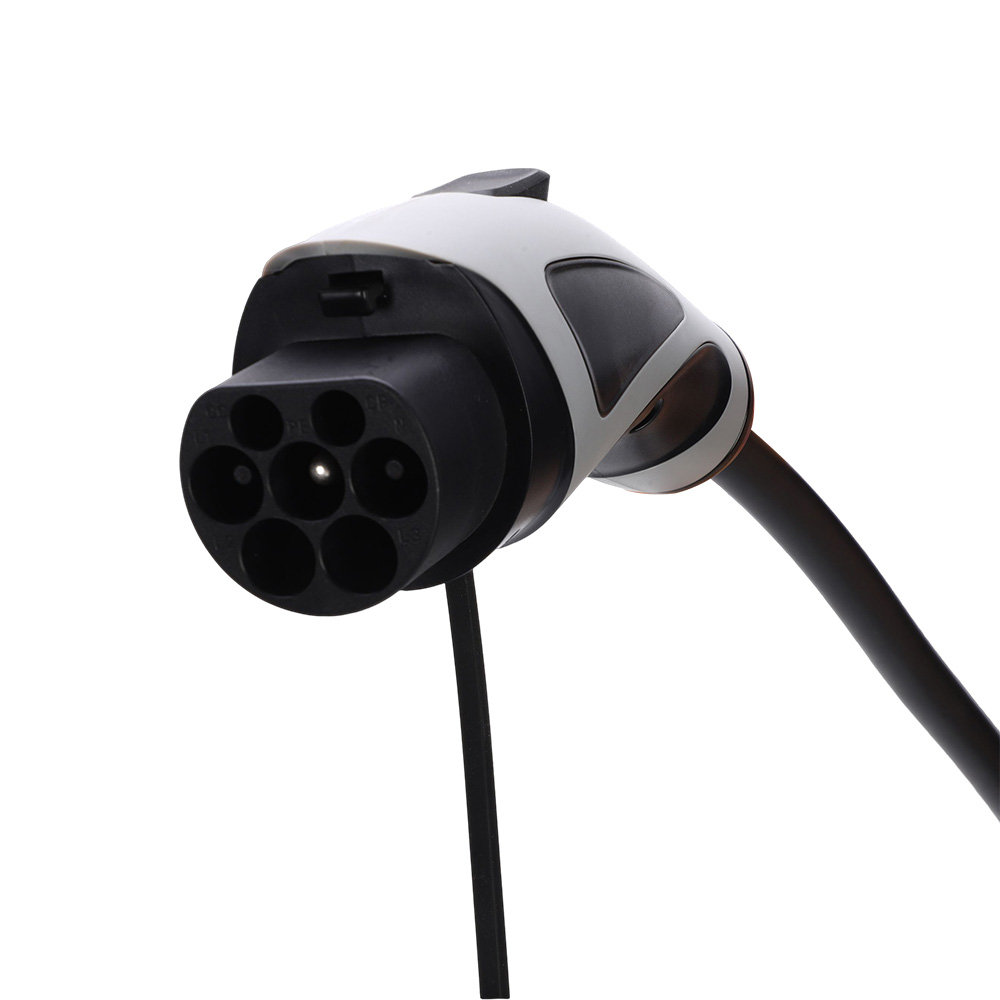

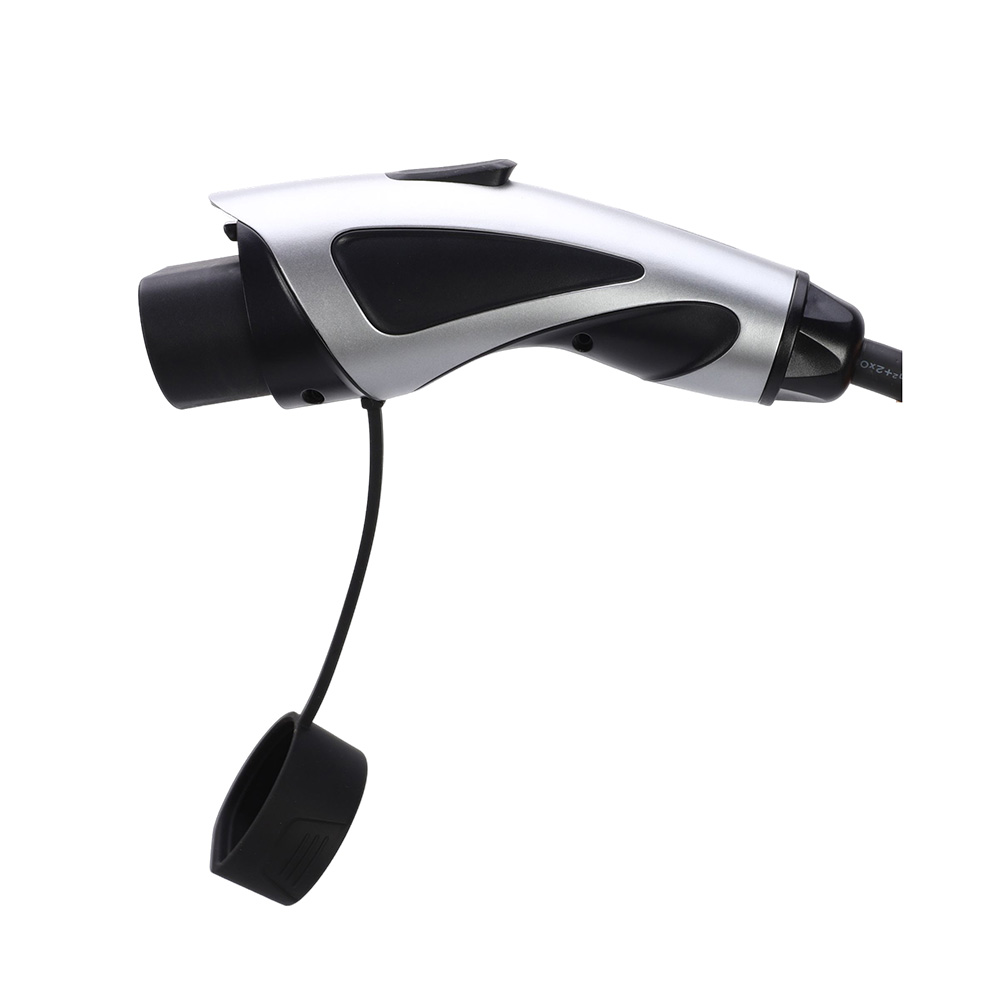

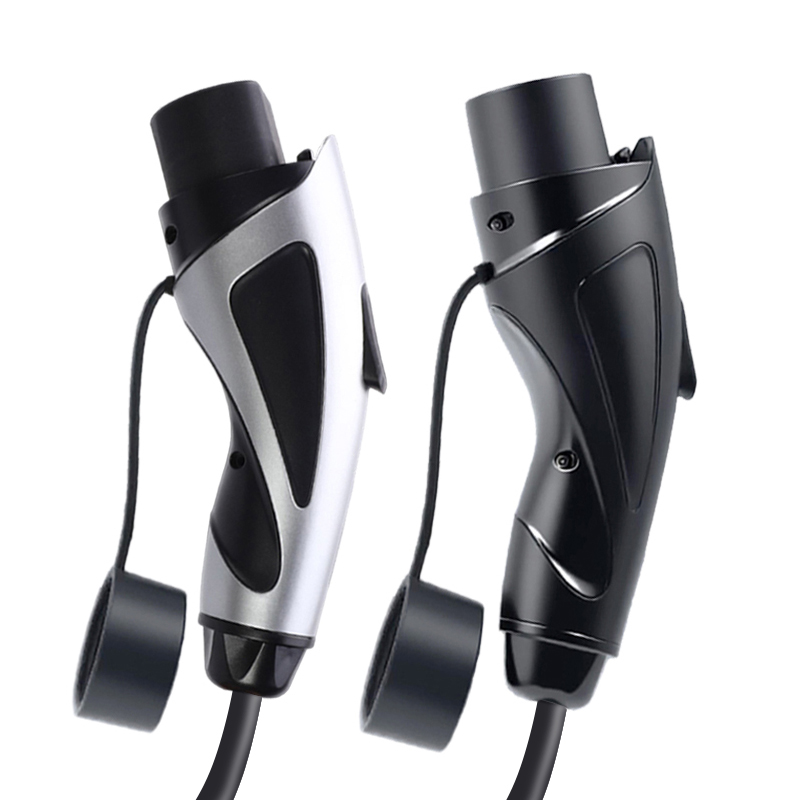

| Gun head | Flame retardant PA66 Nylon material |

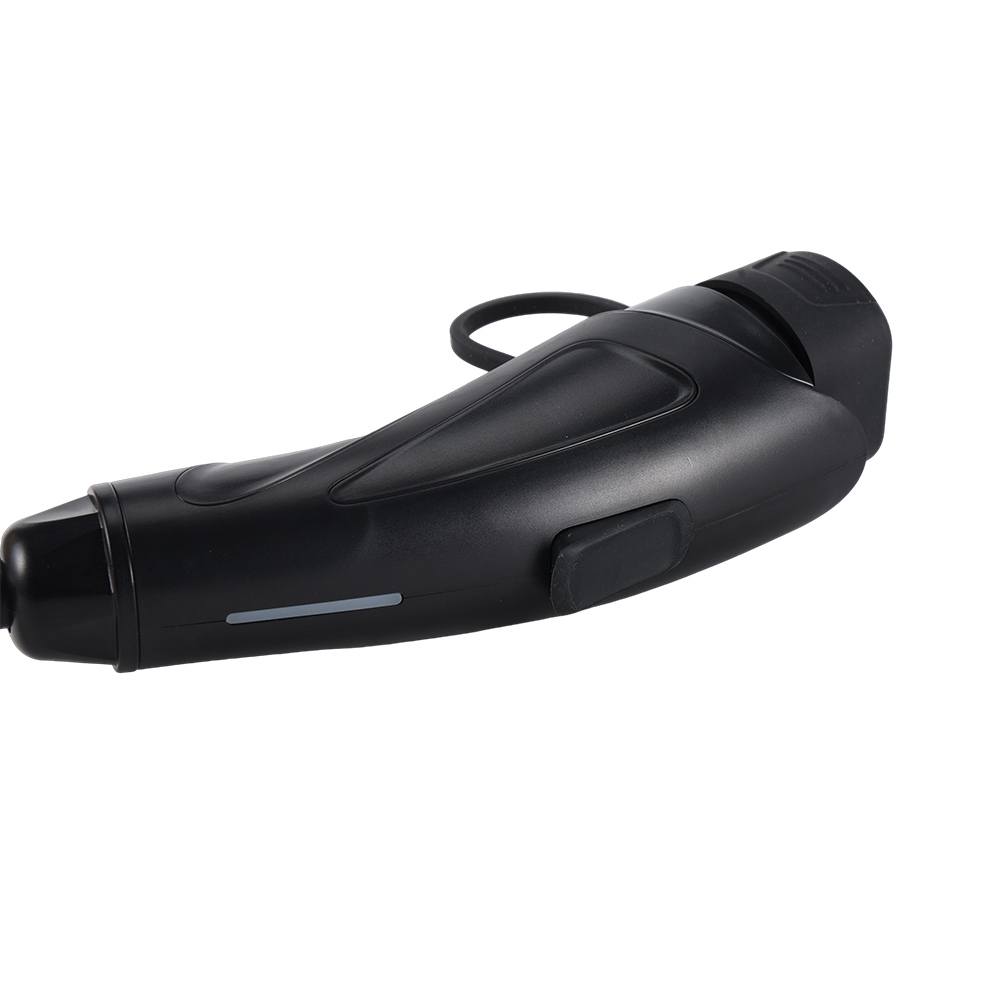

| Handle | Flame retardant PC |
| More Questions? |
Please don't hesitate to contact us! |
|
Power Supply |
Rated Current |
Rated Voltage | Rated Power | Cable Spec |
|
1 Phase |
16A |
220-250V | 3.5KW | 3*2.5mm²+1*0.75mm² |
|
1 Phase |
32A |
220-250V | 7KW | 3*6mm²+1*0.75mm² |
|
3 Phase |
16A |
380-450V | 11KW | 5*2.5mm²+1*0.75mm² |
|
3 Phase |
32A |
380-450V | 22KW | 5*6mm²+1*0.75mm² |
